Rear Discharge Unit

Enviroguard

Rear Discharge Unit

$1,600.00 USD

Enviroguard is an innovative and environmentally sound disposal method of waste water and concrete slurry. The Enviroguard chute rinse system is easily installed on to all ready mix concrete trucks. It is well built, simple to use and inexpensive to maintain. With environmental standards and regulations steadily tightening operators are no longer permitted to dump dirty water and concrete slurry on to the ground or near fresh water ways, storm water systems or sewers.

FEATURES:

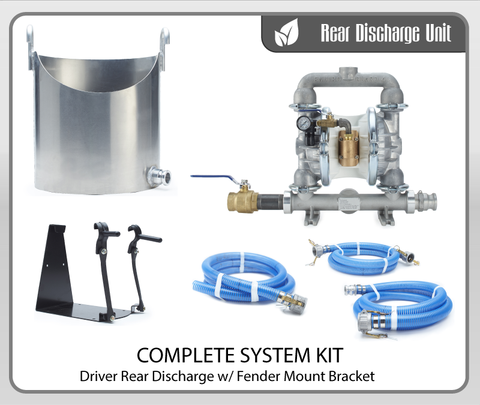

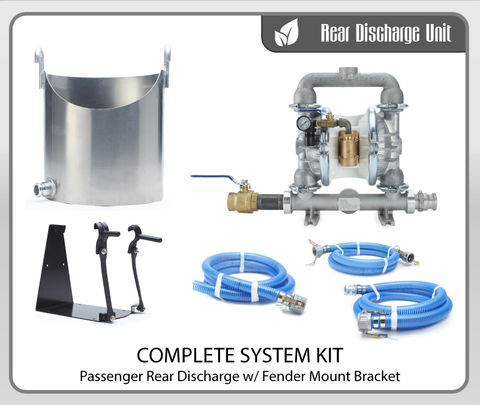

  • Unit consists of pump, buckets, hoses, and all necessary hardware

  • Total weight is 100 lbs

  • Driver attaches special bucket to chute hooks and washes down chute

  • A screen in the bucket catches coarse aggregate for later disposal

  • Slurry water, including sand is pumped from bucket into mixer drum, usually 5 – 8 gallons

  • The pump has been specially modified to reduce wear from abrasives

  • All contaminates remain in the truck system

    UNIT COMPONENTS:

    • Diaphragm Pump - 36 Lbs

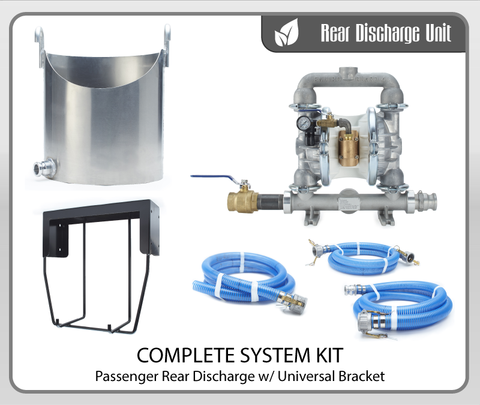

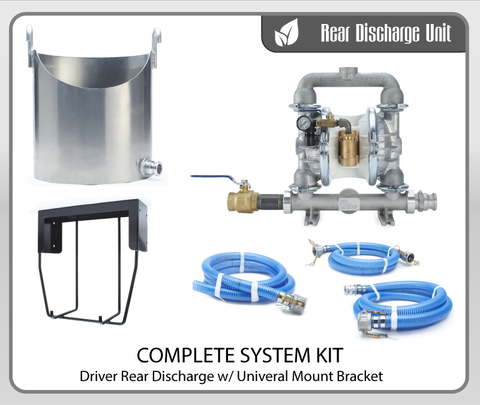

    • Universal Mount Bracket - 26 Lbs
    • Fender Mount Bracket w/ Straps - 11 Lbs
    • Right or Left Hand Rear Discharge Washout Can - 16 Lbs

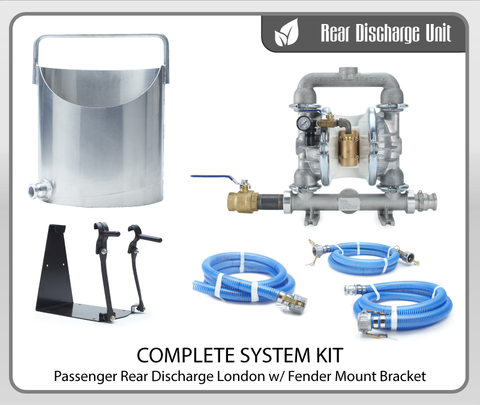

    • Right or Left Hand London Washout Can - 17 Lbs
    • Right or Left Hand Texas Widemouth Washout Can - 18 Lbs

    Total System Weight with all Components = 100 Lbs

      REFERENCE:

      This system also comes with (1) of all of the following small parts:

      Part #                                                   Description

      G65F-125

      (1-1/4") Male Camlock Adapter

      G65A-150

      (1-1/2") Female Camlock Adapter

      G0816B-08-06

      1/2" to 3/8" Brass Bushing

      572RB

      Thread Protector

      G1698M-038-038

      3/8" Street Elbow

      G7016-04-06

      1/4" NPT to 3/8" Tube Fitting

      G1616-038XC

      3/8" Closed Nipple

      G1616B-06-04

      3/8" to 1/4" Combo Nipple

      G1698G-075-075

      3/4" Galvanized Street Elbow

      G1616-150X4

      (1-1/2") X 4" Nipple

      G6-25

      (1-1/4") Support Clamp

      R12R-02

      1/4" Regulator

      V202-038

      3/8" Ball Valve

      PGD15-CBM-0160

      Air Pressure Gauge

      G1212-06X22FT

      3/8" X 22' Air Line

      V202-150

      (1-1/2") Ball Valve

      G1616G-150XC

      (1-1/2") Closed Pipe Nipple
